REVO ATS - UTV Suspension System
SKU:
Regular price$4,360.00
Shipping calculated at checkout.
872 ENTRIES
REVO ATS Adjustable Air-Assisted Coil Suspension
- Legend’s patented design features an independently adjustable (front-to-rear) air-assisted coil suspension for hard-working utility UTV's
- Industry-exclusive, integrated helper air springs, offer a wide range of adjustability to improve ground clearance, chassis leveling, and reduce bottoming under heavy loads
- Designed to optimize ride quality and maintain the factory ride height of UTV's regardless of cargo, accessory, or attachment weights
- Custom coil spring rates improve ride quality when UTV is in an unloaded state
- Engineered to allow UTV's to be loaded to the OE manufacturer's GVWR without jeopardizing stability, safety, or comfort
- Aramid fiber-impregnated air springs provide high puncture resistance and unmatched durability
- Features heavy-duty 46 mm billet aluminum dampers with 16 mm hard chrome shafts for exceptional strength
- Easy access knob allows tool-free rebound adjustment for precise, fast, and repeatable adjustments for fine-tuning ride quality and performance across the entire damping profile
- Type III hard coat anodized for a long-lasting, durable finish
- Spherical bearings in mounting points eliminate suspension bind throughout the range of suspension travel
- Air pressure adjustments are easily made via a one-touch, wireless remote control and/or a Bluetooth mobile app

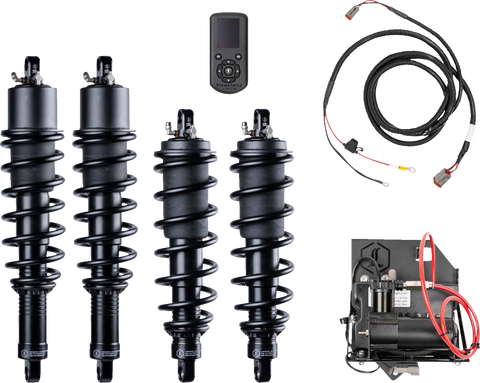

- Kit includes four shock assemblies, pre-mounted compressor assembly, remote control, wire harness, airline, and air fittings for easy installation
- Assembled in Sturgis, SD U.S.A
- Compatible with stock A-arms, not to be used with or as a lift kit.
