Cam Specs
| 570 Series | Intake | Exhaust |
|---|---|---|
| Lift | 0.570" | 0.570" |
| Duration | 240° | 255° |
| Opens | 20° | 55° |
| Closes | 40° | 20° |
| Lobe Centerline | 100° | 107.5° |
| Lift at TDC | 0.187" | 0.179" |
Confirm compression, valve springs and pushrods are matched to the cam before installing.
Features
The S&S Camshaft Kit adds power and throttle response with a performance cam profile built for your engine.
This is the 570 Series grind. See the cam specs for lift, duration and valve events, and confirm your engine's compression and valvetrain are matched to the cam before installing.
Fits Harley-Davidson Touring (2007-2016), Softail (2007-2017) and Dyna (2006) models. Check the fitment chart below to confirm your exact year and model.
- Designed for 88" to 103" CID engines with compression ratios between 9:1 and 10:1

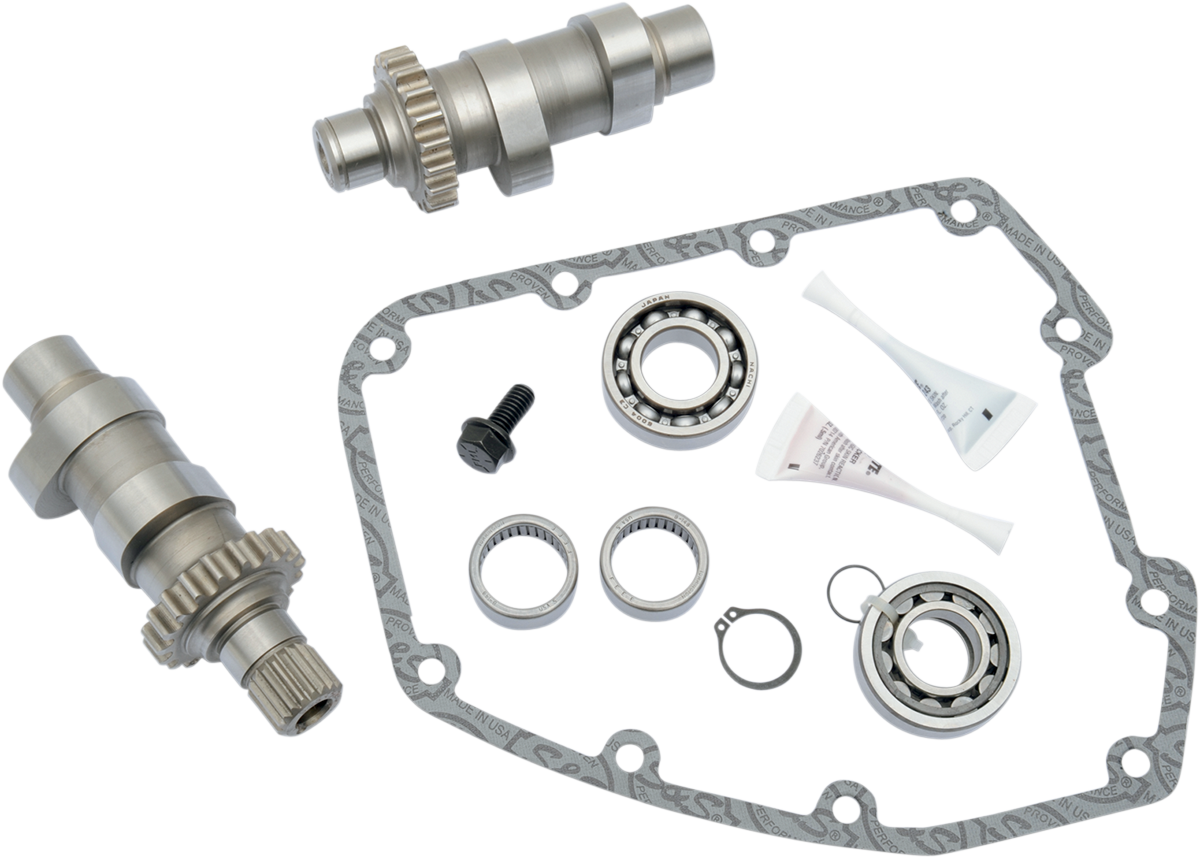

- Kit includes camshafts, gearcover gasket, bearings, retaining ring, o-ring, thread lock and instructions
- Strongest from 3200-3700 rpm
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
- Requires high lift valve springs.
- Camshafts for '06 Dyna and '07-'17 Twin Cam are for use with models with hydraulic tensioner chain drive system.
- Camshafts for '00-'06 Twin Cams are use with stock splined drive gears.
Info
Shipping Information
Due to high volume some orders can take up to 14 business days to ship.
If your order contains a part and merch, they may ship separately.
CARB Notes
49-State Legal — Not legal for sale or use in California on any pollution controlled motor vehicles.
Specs
| Product Name | S&S Camshaft Kit - 570C Chain Drive - Twin Cam - 0925-0348 |
|---|---|
| Type | Chain |
| Units | Kit |
| Riding Style | Street |
Fitment
| Position | Notes |
|---|
No matching vehicles.
