Cam Specs
| 543 Series | Intake | Exhaust |
|---|---|---|
| Lift | 0.543" | 0.553" |
| Duration | 238° | 248° |
| Opens | 15° | 56° |
| Closes | 43° | 12° |
| Lobe Centerline | 104° | 112° |
| Lift at TDC | 0.160" | 0.140" |
Confirm compression, valve springs and pushrods are matched to the cam before installing.
Features
The Feuling HP+ Camchest Kit adds power and throttle response with a performance cam profile built for your engine.
This is the 543 Series grind. See the cam specs for lift, duration and valve events, and confirm your engine's compression and valvetrain are matched to the cam before installing.
Fits Harley-Davidson Touring (2007-2016), Softail (2007-2017) and Dyna (2006-2017) models. Check the fitment chart below to confirm your exact year and model.
Part of the Feuling HP+ line.
- All necessary components from top-to-bottom of the camchest
- Provide maximum reliability, longevity, peak performance, and the coolest engine and oil temperatures obtainable
- Quieter and smoother engine operation
- Increase oil pressure, scavenge volume and engine oil flow
- 25°-35° cooler engine temperatures
- 15°-30° cooler oil temperatures
- 15-30 more PSI of oil pressure
- Eliminate wet sumping, blow by and oily air cleaners

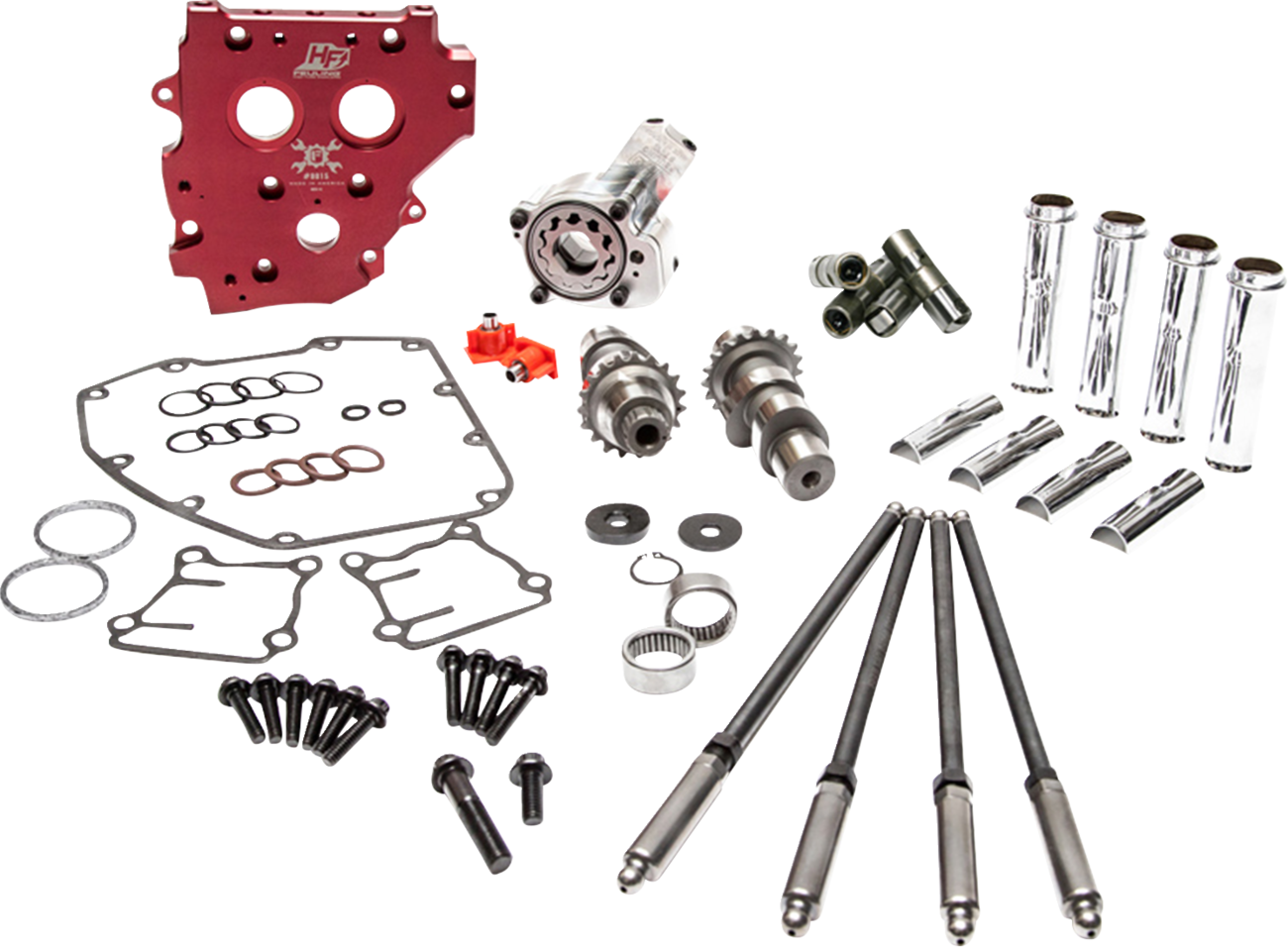

- Kit includes Feuling® high volume oil pump, High Flow camplate, Reaper® series camshafts, hydraulic roller lifters, quick install adjustable pushrods or one-piece pushrods, Timken® bearings, gaskets, o-rings, exhaust gaskets, ARP® fasteners, washers moly paste, Loctite®, and hardware
- For all '07-'17 Twin Cam and '06 Dyna.
Info
Shipping Information
Due to high volume some orders can take up to 14 business days to ship.
If your order contains a part and merch, they may ship separately.
CARB Notes
49-State Legal — Not legal for sale or use in California on any pollution controlled motor vehicles.
Specs
| Product Name | Feuling Camchest Kit - HP+ - 543 Series - Chain Drive - Twin Cam - 0925-1295 |
|---|---|
| Type | Chain Drive |
| Model | HP+® |
| Units | Kit |
| Riding Style | Street |
Fitment
| Position | Notes |
|---|
No matching vehicles.
