100" Power Package - 585GE - Gear Drive - Silver - Twin Cam 88
SKU: 0904-0027
Regular price$3,355.95
Shipping calculated at checkout.
671 ENTRIES
100" Power Package - 585GE - Gear Drive - Silver - Twin Cam 88
- Made in the USA

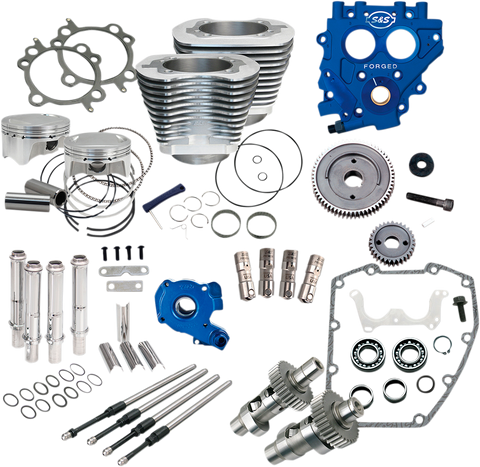

- S&S 4.000" Big-Bore Cylinders, Piston Kits, S&S 585 Easy Start® Cams, S&S Quickee Pushrods, TC3 Cam Support Plate, TC3 Oil Pump, and Precision Hydraulic Tappets are included in this kit
- S&S Cylinder
- 2x S&S 4.000" bore cylinders
- Low friction ductile cast iron liner
- Bolt in
- No maching, balancing, or splitting the crankcase
- Can be used with stock heads
- Increase displacement from 88 ci to 100 ci
- Piston Kit
- 2x 4.000" pistons for front and rear
- 2x 0.927" piston pins
- 4x Piston pin clips with installation tool
- 2x Ring packs which includes the top, second, oil rail and expander rings
- Provides 10.5:1 compression ratio
- S&S 585 Easy Start® Cam Specifications
- Intake: Open 20° / Close 45° / Duration at 0.053" 245° / Valve Lift 0.585"
- Exhaust: Open 60° / Close 20° / Duration at 0.053" 260° / Valve Lift 0.585"
- S&S Quickee Pushrods
- Adjustable with chrome tubes
- TC3 Cam Support Plate and TC3 Oil Pump
- Machined from aluminum forgings
- Ensures consistent oil pressure and engine longevity
- Precision Hydraulic Tappets
